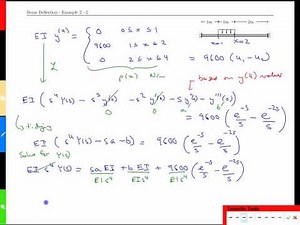

BEAM DEFLECTION 1. What is Deflection? Beam deflection is the vertical displacement of a beam when a load is applied. It indicateshow much a beam bends under loading. 2. Factors Affecting Deflection • Load intensity (W or w) • Span length (L) • Material property (E – Modulus of Elasticity) • Beam size & shape (I – Moment of Inertia) • Support conditions 3. Important Deflection Formulas Cantilever Beam – Point Load at Free End: δ = (W L³) / (3EI) Cantilever Beam – UDL: δ = (w L4) / (8EI) Simply S
