This simulation illustrates the working of a Full Wave Rectifier circuit using a center-tapped transformer and two diodes. The waveform at the top shows how both halves of the AC input are converted into positive pulses at the output, effectively doubling the frequency of the ripple. The circuit ensures that during both positive and negative cycles of the AC input, current flows through the load in the same direction, providing full-wave rectification. #ElectronicsEducation #electronicsrd #recti

314K views · 3.7K reactions | This simulation demonstrates a Full...

This simulation compares three half-wave rectifier circuits. The first one uses only a diode and a 100 kΩ load, so the output is just positive pulses that follow the AC peaks. The second circuit adds a 100 nF capacitor across the load. Because the value is small, the capacitor charges at each peak but discharges quickly, creating a large ripple with a slowly falling exponential shape. The third circuit uses a 100 µF capacitor, which stores much more charge. It holds the peak voltage for a longer

This illustration explains the working principle of a bridge rectifier. It shows how four diodes are connected in a bridge configuration to convert AC input into DC output. During the positive half cycle of the AC input, current flows through two diodes in one path, delivering power to the load. During the negative half cycle, the other two diodes conduct, again directing current through the load in the same direction. As a result, both half cycles of AC are utilized, producing a full-wave recti

71K views · 3.4K reactions | Full wave bridge rectifier. In this video we look at the full wave bridge rectifier, the half wave rectifier the full wave rectifier, center tapped transformers, diodes, load, oscilloscope, waveform, DC, AC, voltage current, capacitors, bleeder resistor to learn how full wave bridge rectifiers work. #engineering #electric | The Engineering Mindset | Facebook

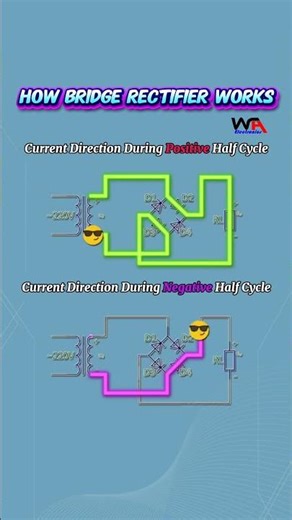

Bridge Rectifier Introduction... Electronics Components 3D Animation Videos... Like❣️ comments📋 Share📤 . #bridgerectifier #bridgerectifiers #bridgerectifier3d #3danimation #3delectronics #3delectrical #diyelectronic #diyelectronics #diyelectronica #diyelectronicsprojects #diyelectronicproject #diyelectronicguru #electronic #electronics #electronica #electronicwork #electronicworks #electronicstudent #electronicstudents | WA Electronics 2.0
